Product Description
NB North Bayou monitor desk mount

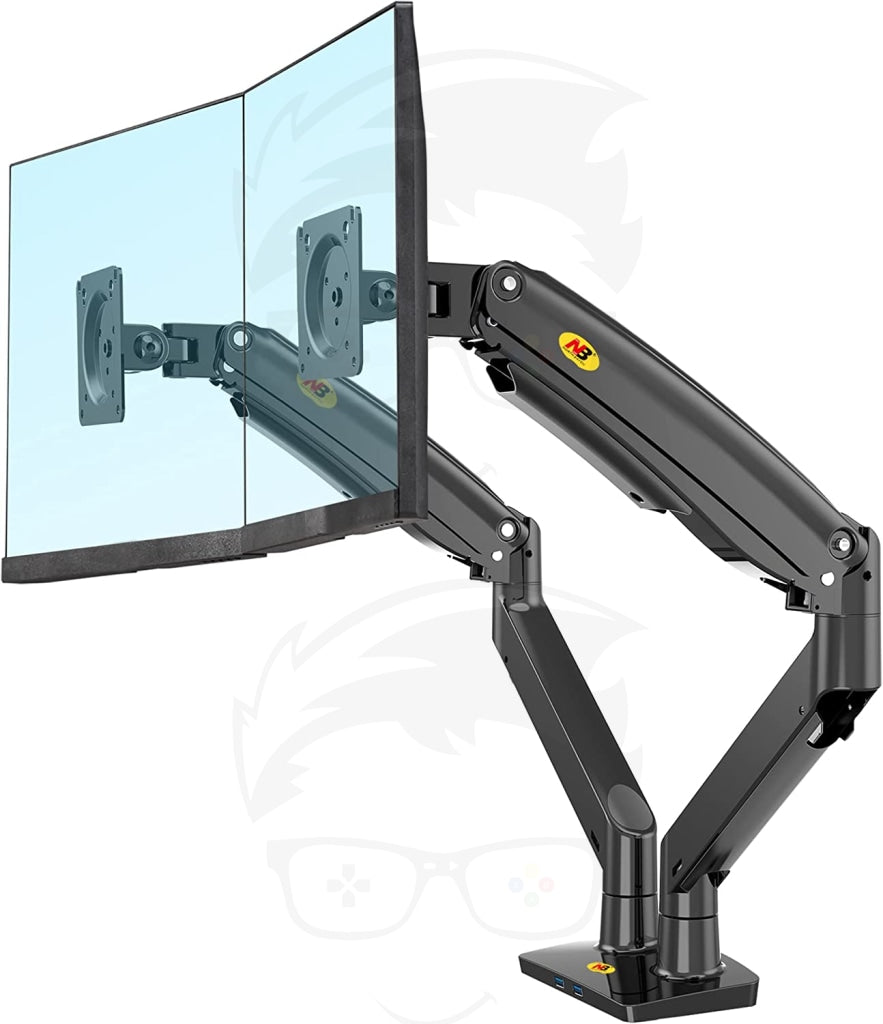

F160 is an ergonomics interactive display arm that allow you position your monitor wherever you need it so you can work in ergonomic comfort. It helps increase viewing comfort and reduce eye, back and neck strain. Height adjustable arm provide more work space, push away and free up table or desktop space when not in use.
|
|
|
|
|---|---|---|
Swivel +90° and -90°Supports swivel flexible, It's very easy to share screens with clients or colleagues. |
Tilt +85° and -30°Try to adjust and find a better view and reduce glare, offers a comfortable viewing position. |

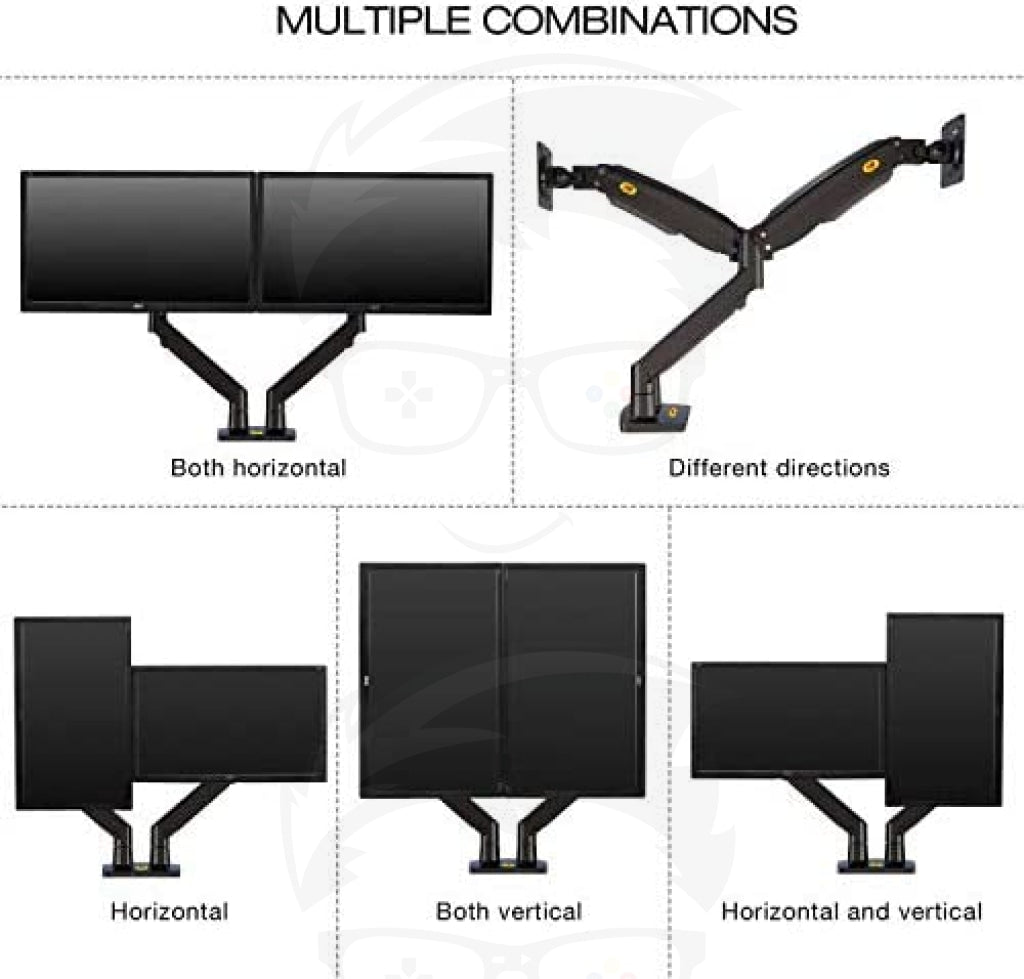

360° RotationMakes your displays landscape and portrait, provide multiple modes of work and entertainment. |
|
|
|
|
|---|---|---|

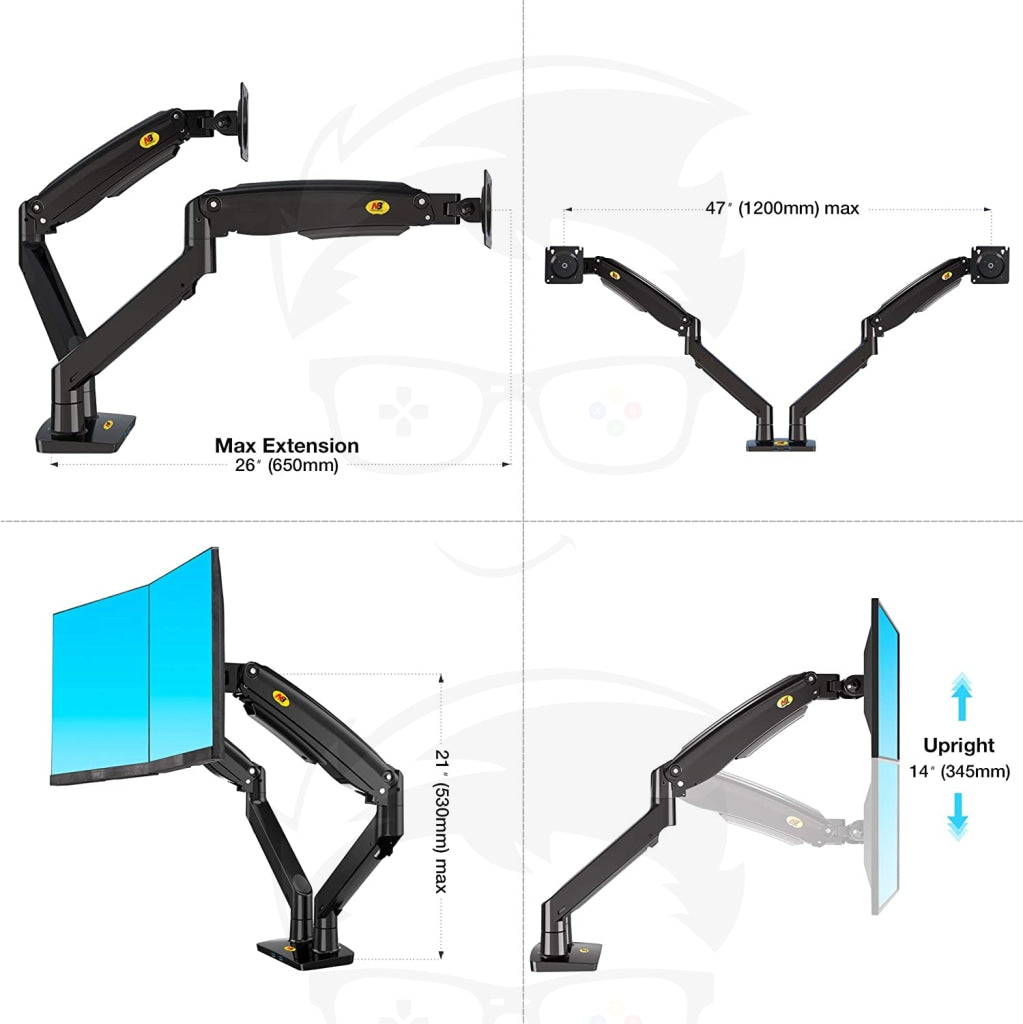

Long ExtensionGreat forward capacity allows better use of your desk and provides more angle of view. You can adjust extension near or far, depends on your demands. |
Built in quality Gas SpringBuilt-In high quality Gas Spring provide long lifetime support for the product |

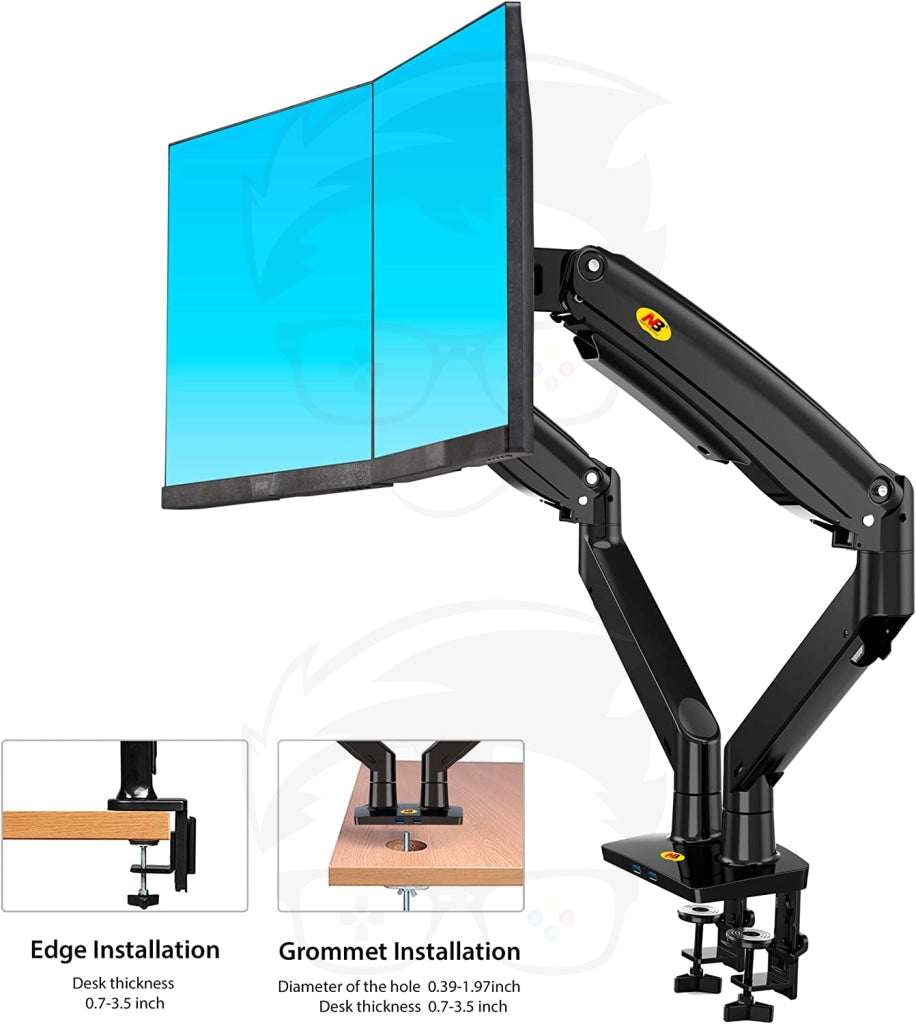

Easy Installation |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| F80 | G40 | G32 | F150-B | NB45-B | |
| Fit Screen Size | 17''-30'' | 22''-40'' | 22''-32'' | 17''-35" | 24"-42" |
| Load Capacity/each arm | 4.4 -19.8lbs | 4.4 to 30lbs | 4.4 to 30lbs | 4.4 - 22lbs | 4.4 - 33lbs |
| Screen Tilt | +85° to -30° | +85° to -30° | +85° to -30° | +85° to -30° | +12° to -12° |
| Screen Swivel | +90° to -90° | +90° to -90° | +90° to -90° | +90° to -90° | +90° to -90° |
| Screen Rotation | 360° | 360° | 360° | 360° | 360° |

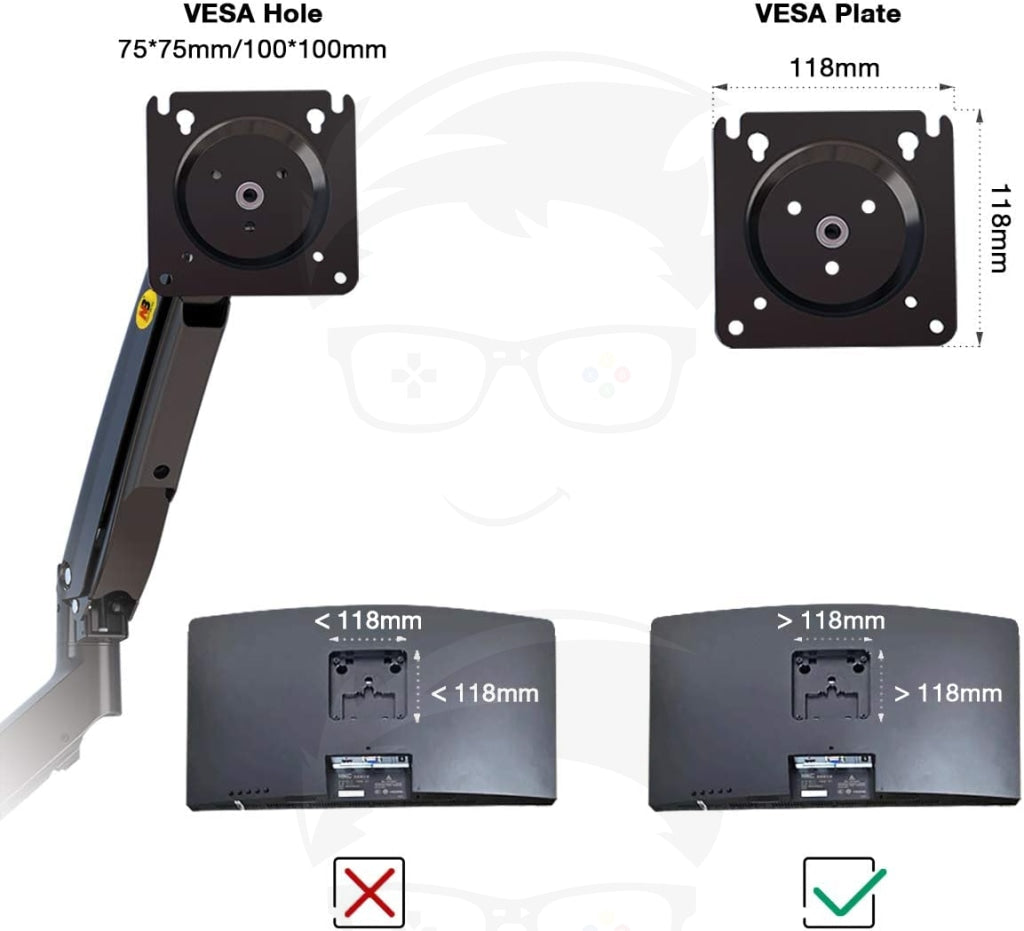

| VESA | 75*75mm or 100*100mm | 75*75mm or 100*100mm | 75*75mm or 100*100mm | 75*75mm or 100*100mm | 75*75mm or 100*100mm |
| C-Clamp Mounting | ✓ | ✓ | ✓ | ✓ | ✓ |
| Grommet Mounting | ✓ | ✓ | ✓ | ✓ |
