VP-450
| Technical Specifications | ||
| 80PLUS® | None 80+ | |
| Efficiency Level | >75% | |
| Noise Level | Zero (ECO-ON),<32dBA (at 100% load) | |
| Form Factor | Intel ATX 12 V 2.31 | |
| Dimensions | 140 mm (W) x 150 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | ECO-ON/OFF | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Wired Cabling |
| Cable type | Black tube shield along with colors CPU and PCIe connecor | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | AC 115/230V by manual switch | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | CB, CCC,CE |
| Environmental Compliance | RoHS, WEEE, ErP Lot 6 | |

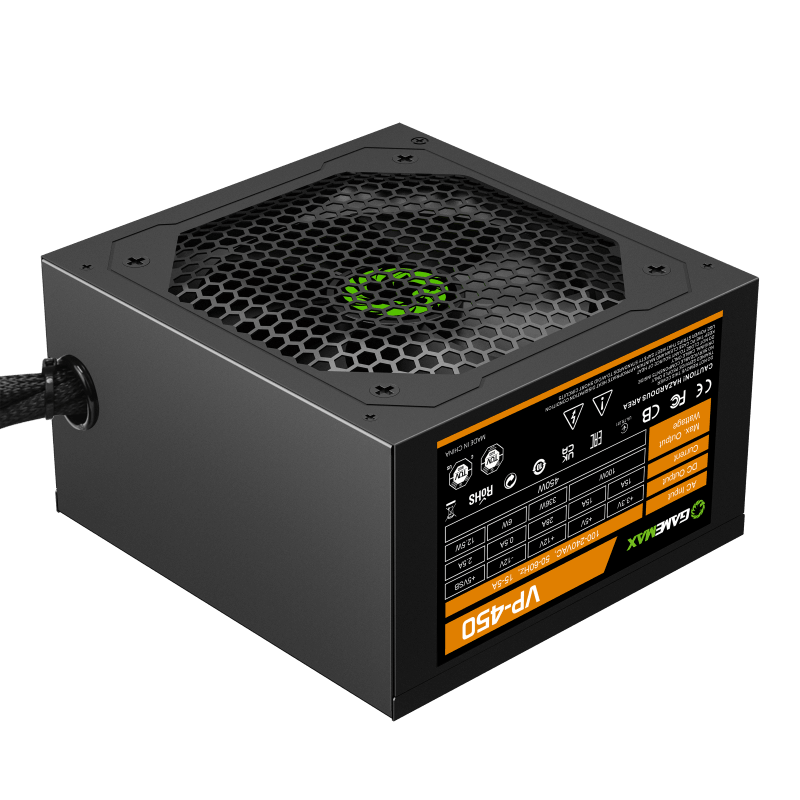

PSU SPECIFICATION
| AC INPUT: AC 115/230V 50-60Hz 6-3A | |||||
| DC Voltage | +3.3V | +5V | +12V | -12V | +5VSB |
| Output | 15A | 15A | 28A | 0.5A | 2.5A |
| Watt | 100W | 336W | 6W | 12.5 W | |
| Max Output | 450W | ||||
● Classic half-brige PCB version,Imporved feature!
Optimized efficiency >72% efficiency @ 20-100% load&INPUT AC230V.
● Lot 6 2013 ready!
Help system meet ErP Lot 6 2013 (<0.5W at standby mode) with high efficiency 5Vsb circuitry.

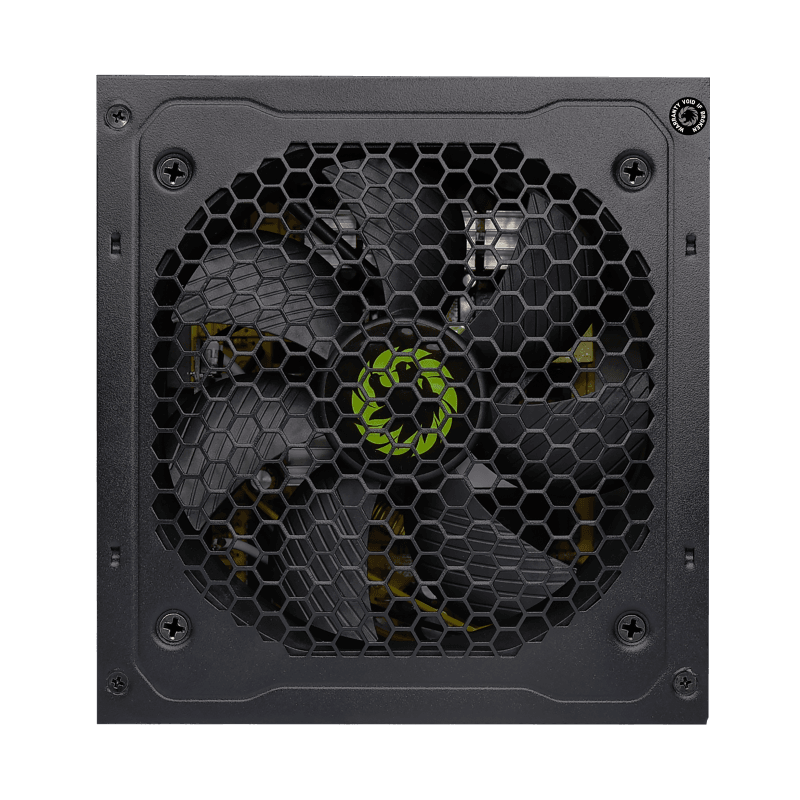

● AirGuard
Honeycomb ventilation design for optimal heat dissipation.
● Durable hydraulic pressure bearing fan
Low Noise 12cm Fan with intelligent fan speed control.
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
● Smart and Silent Fan control

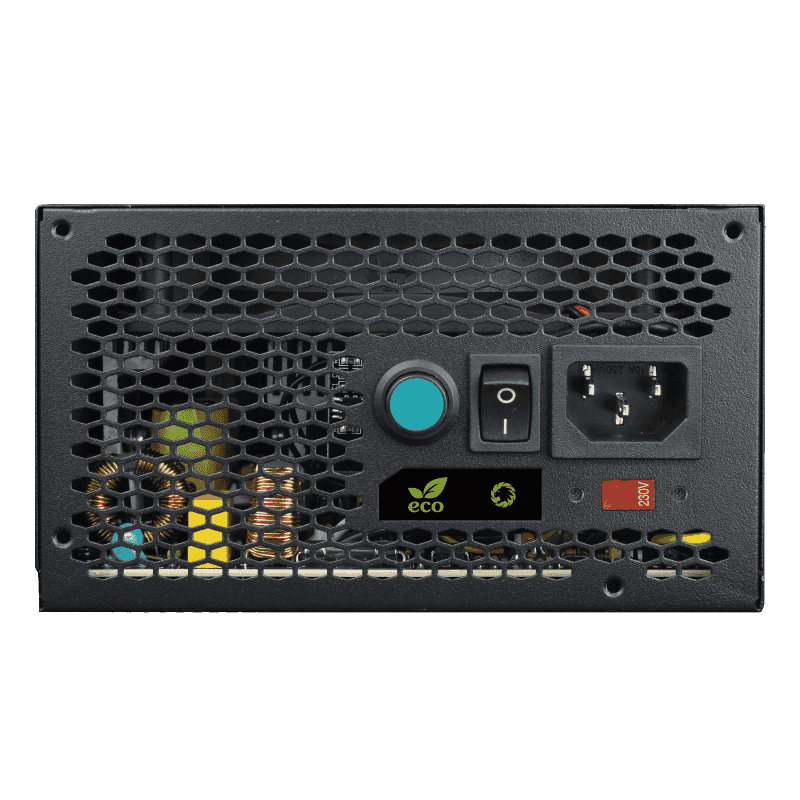

There is a ECO switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Fanless Mode and the Silent Mode
ECO -ON Status, Fanless Mode
ECO -OFF Status, Silent Mode
●Tempreature control curve
Reduced noise without increase in temperature;
Extended fan life due to the reduced number of fan rotations;
Optimized heat dissipation at all times;
Unsurpassed silent performance in Fanless Mode.
