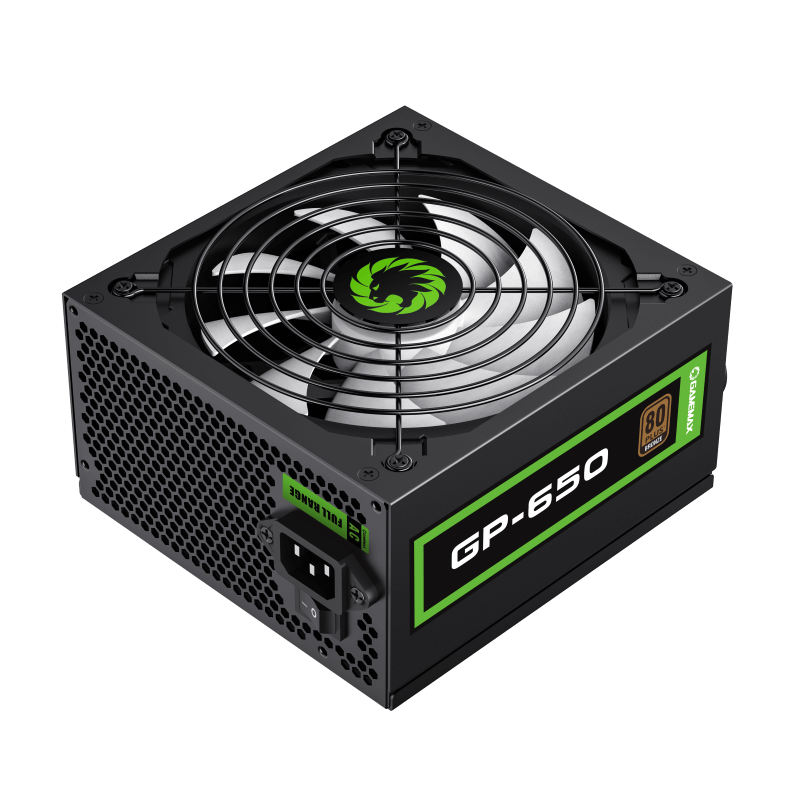

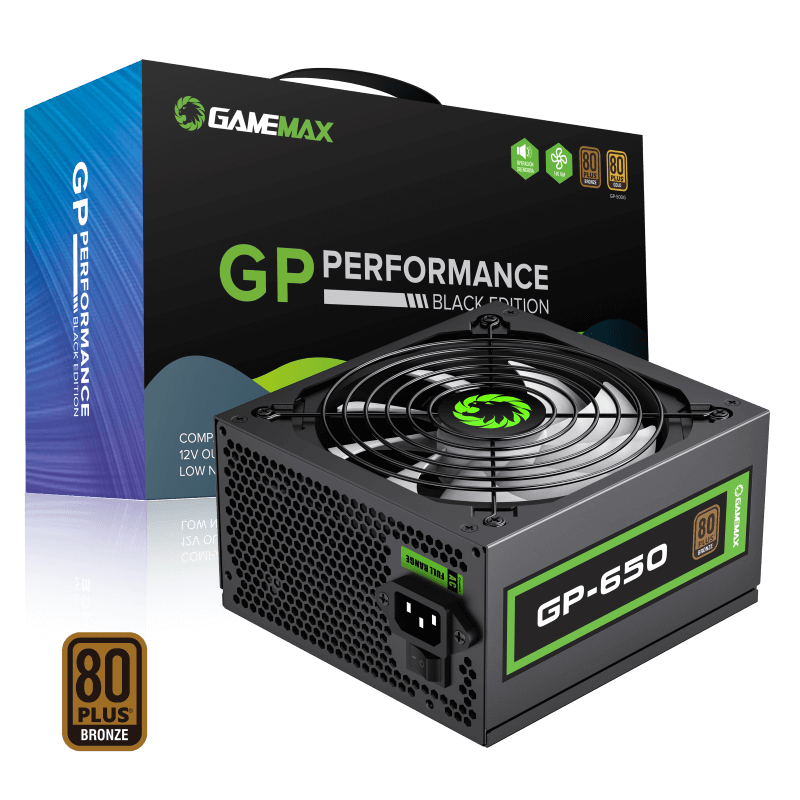

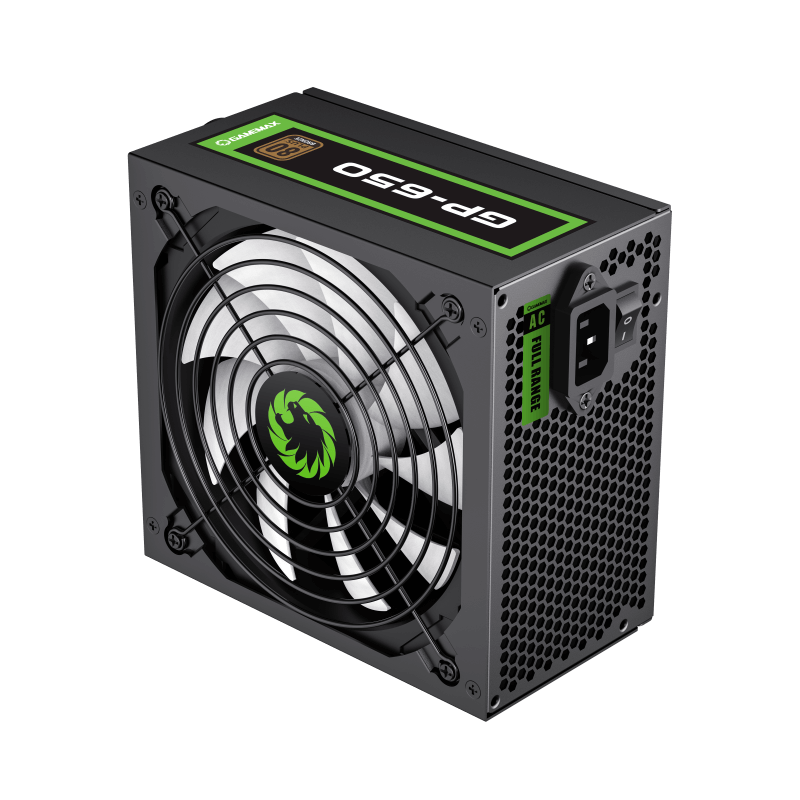

- GAMEMAX GP-650 85+ Bronze Power Supply GAMEMAX GP-650 85+ Bronze Power Supply
- Description
AC INPUT: 100-240 VAC 4-8A 50-60Hz | ||||||
DC Output Max |
+3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
18A | 18A | 22A | 22A | 0.5A | 2.5A | |
650W |
Connectors
20+4 Pin Main Connectors: 1 |
|
4+4 Pin 12V Connectors: 1 |
|
SATA Connectors: 5 |
|
4-Pin Molex Connectors: 3 |
|
6+2 Pin PCI-e Connectors: 2 |
Detailed Specifications
Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
Input Voltage: | 100-240 VAC |
Input Current: | 4-8A |
Input FrequencyRange: | 50-60Hz |
PFC: | Active PFC (>.99) |
Power Good Signal: | 100-500 ms |
Hold Up Time: | >17ms |
Efficiency: | > 81% (85% max) |
MTBF: | > 100,000 Hours |
Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/AFC |
Power: | 650W |
Operation Temperature: | 0-40C |
Safety: | CE/FCC/CB |
Cooling: | 140mm Ultra Slient Fan |
Noise: | <25dBa |
80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
Manufacturer Part Number: | GP-650 |
EAN Number: | 6931858720069 |
Has Mains Plug: | No |
Colour: | Black |
What's In The Box: | Power Supply Screws Manual 2 x Cable Ties |
Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
Packaging Dimensions (mm): | 300mm x 180mm x 115mm (W x H x D) |
Net Weight (KGs): | 1.7 KGs |
Gross Weight (KGs): | 2.1 KGs |
